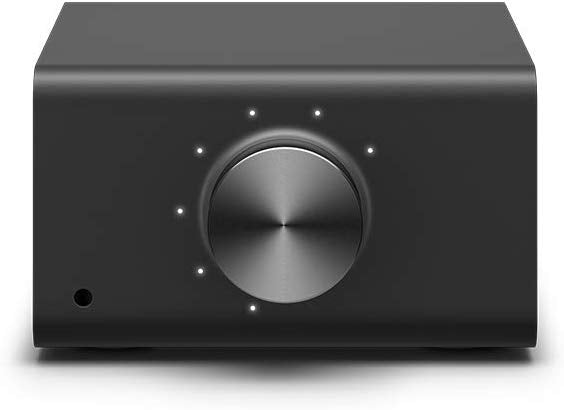

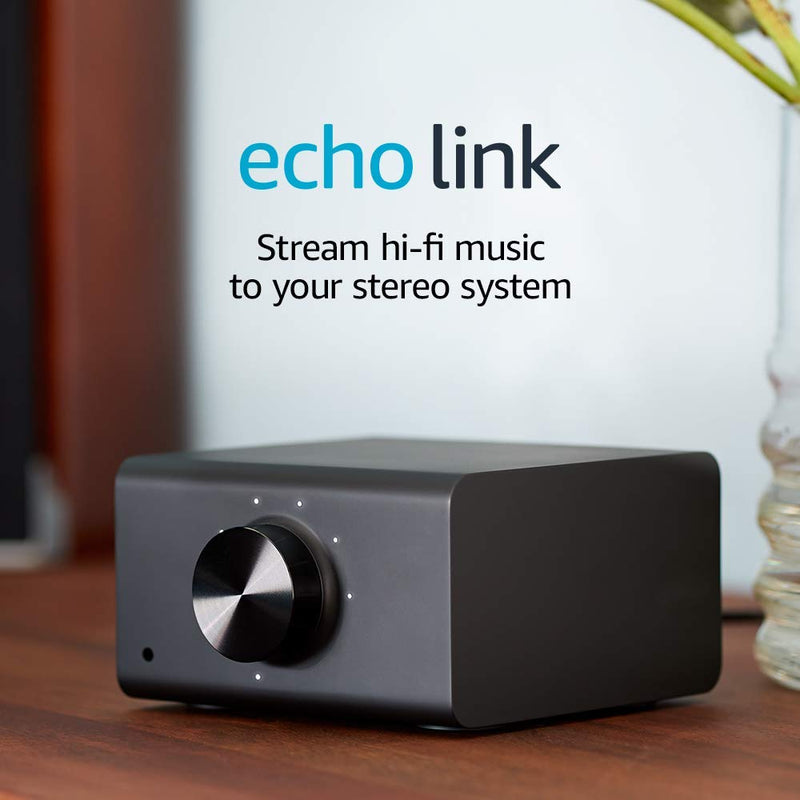

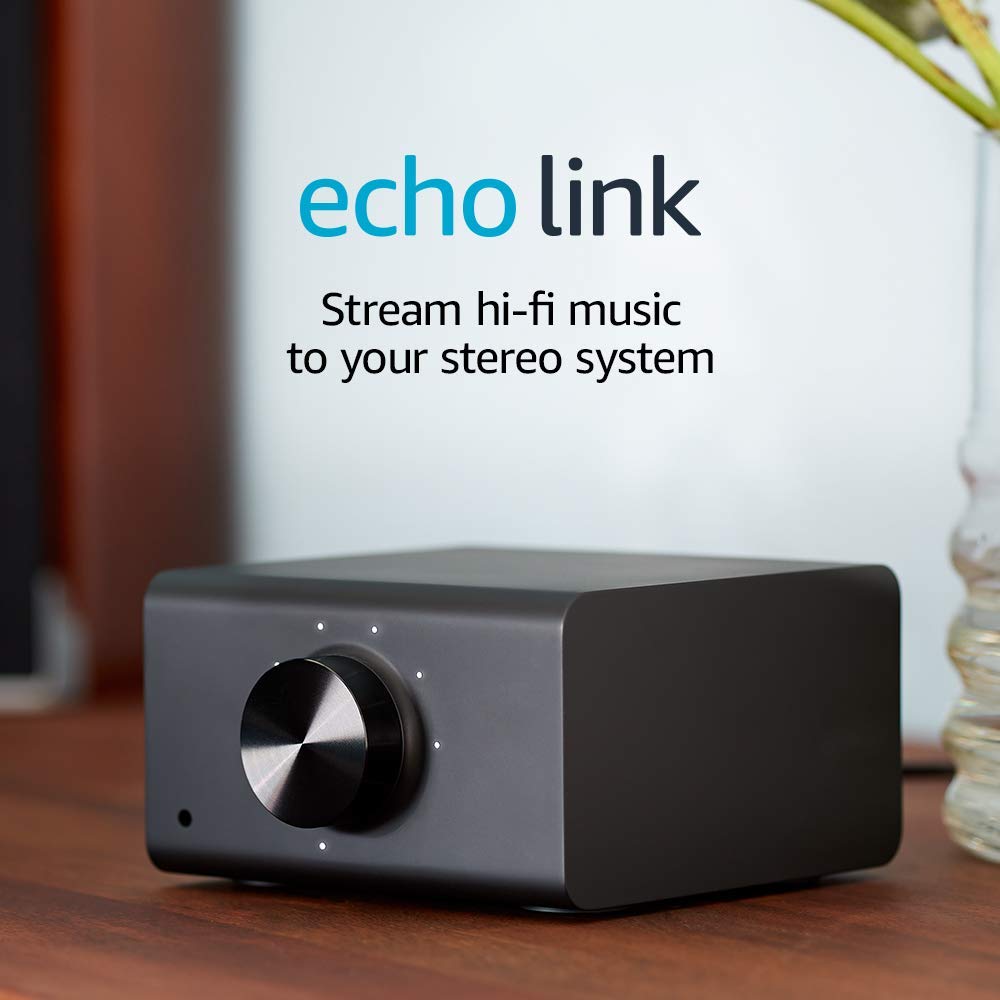

Meet Echo Link
Now you can upgrade your stereo system and stream music in superior hi-fi sound. Echo Link connects streaming music from your favorite services—like Amazon Music,
Apple Music, Spotify, Pandora, and Tidal—to your amp or receiver. Use it with Alexa to voice control music selection, volume, and playback.

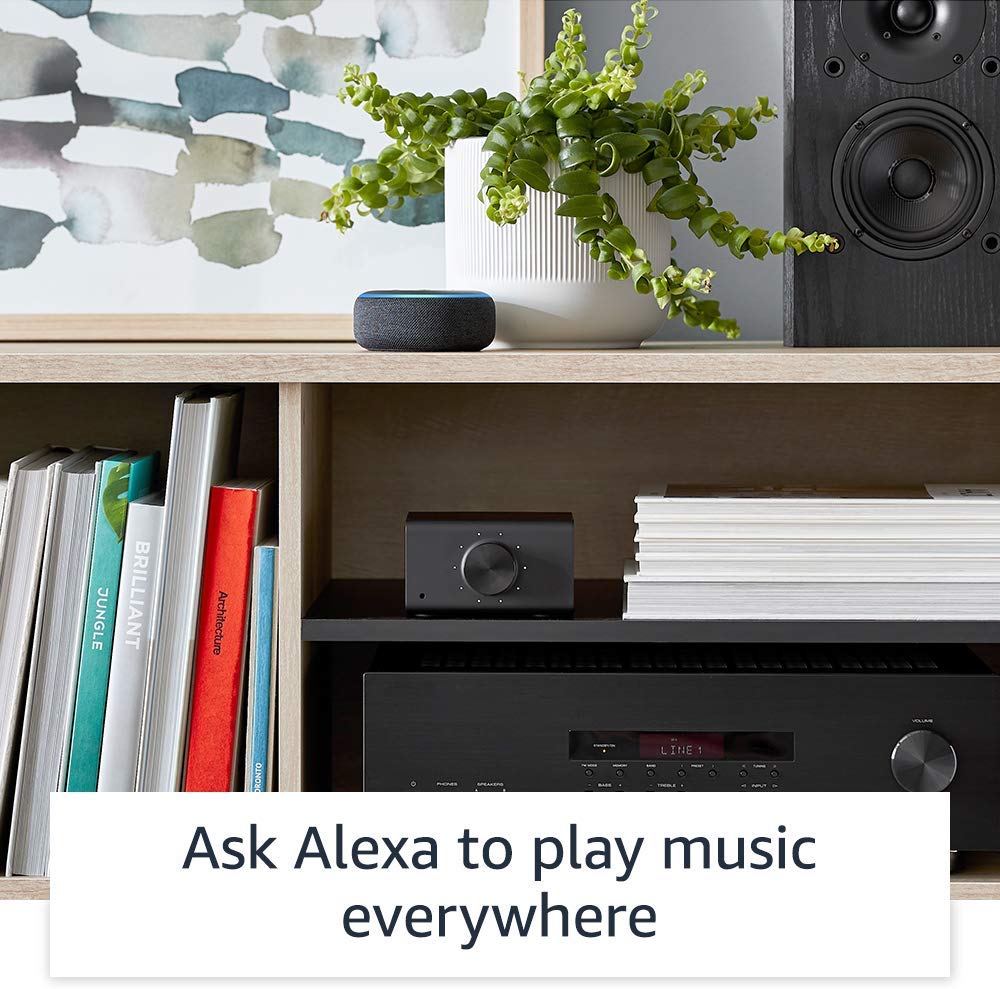

Play music everywhere
With Echo Link and an Echo device, you can create voice-controlled music groups throughout your home and play streaming music wherever your system goes—the whole house, in one room, or outside. Or plug in a stereo component—like an amplified turntable, CD player, or MP3 player—and cast music to multiple Echo speakers at once. You can also stream high-fidelity music on your headphones.

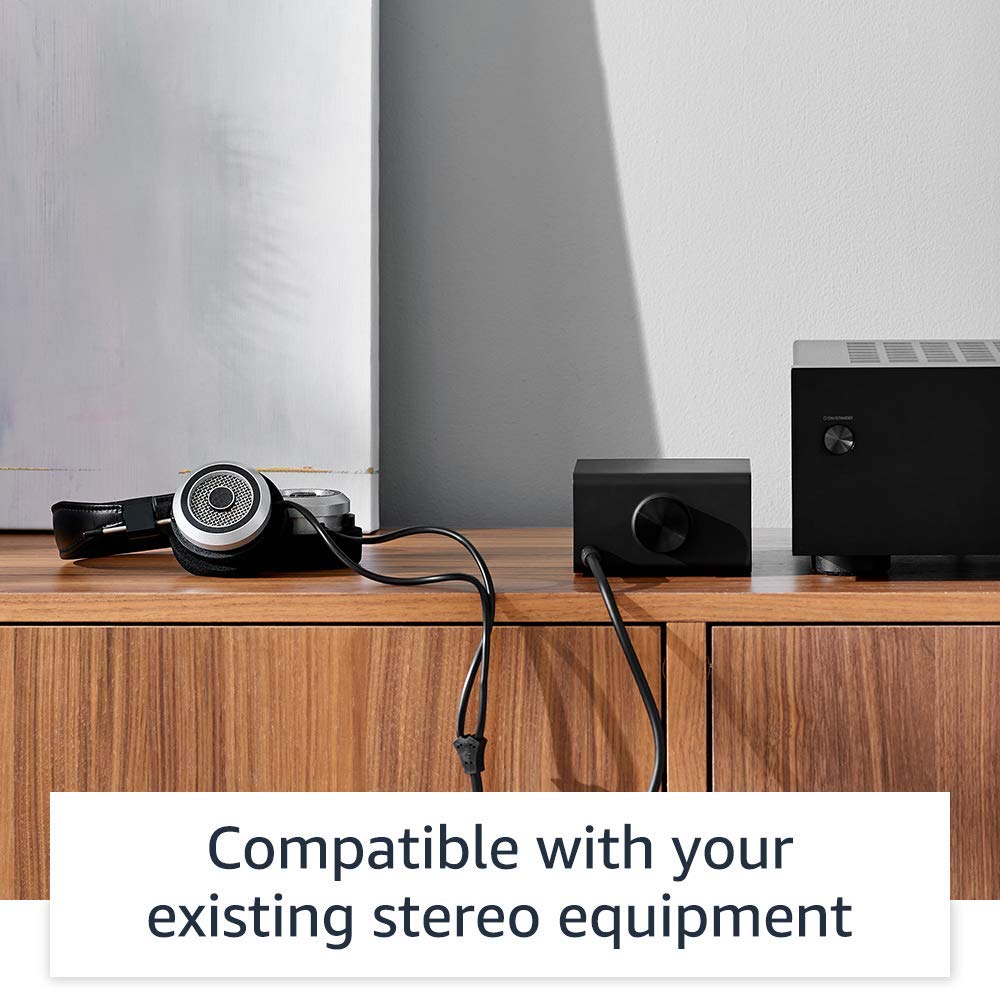

Works with your system
Echo Link easily fits into your stereo system. The inputs and outputs provide compatibility with your existing digital and analog audio equipment, so you can play music from your favorite source on the system you already love—and it's designed to fit in an audio rack.
4.5 x 5.3 x 2.7 in (115 x 135 x 68 mm)
18.0 oz (510 g) Actual size and weight may vary by manufacturing process
Supported audio formats
FLAC, MP3, AAC, Opus, Vorbis; includes support for CD-quality (16-bit) and hi-res (up to 24-bit)
Supported music streaming services
Amazon Music (Standard and HD), Apple Music, Spotify, Tidal, Deezer, Pandora, SiriusXM, iHeartRadio, TuneIn

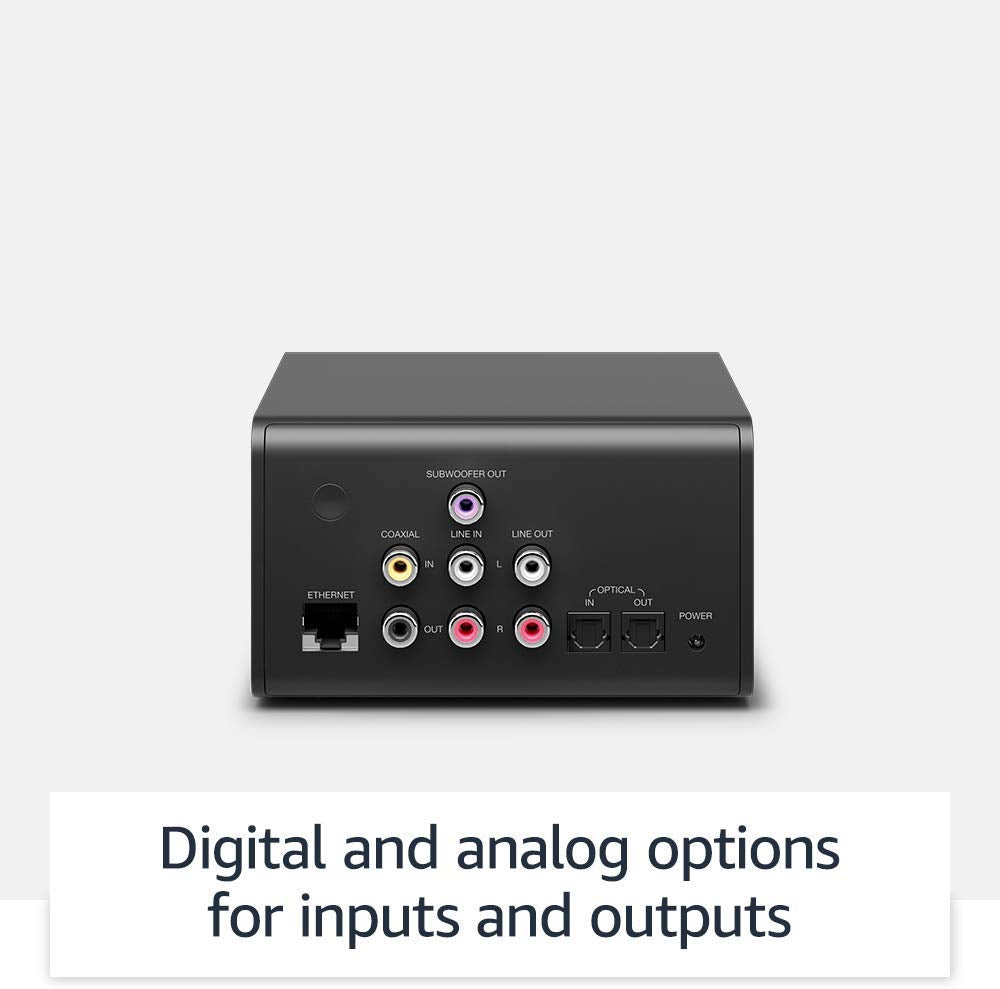

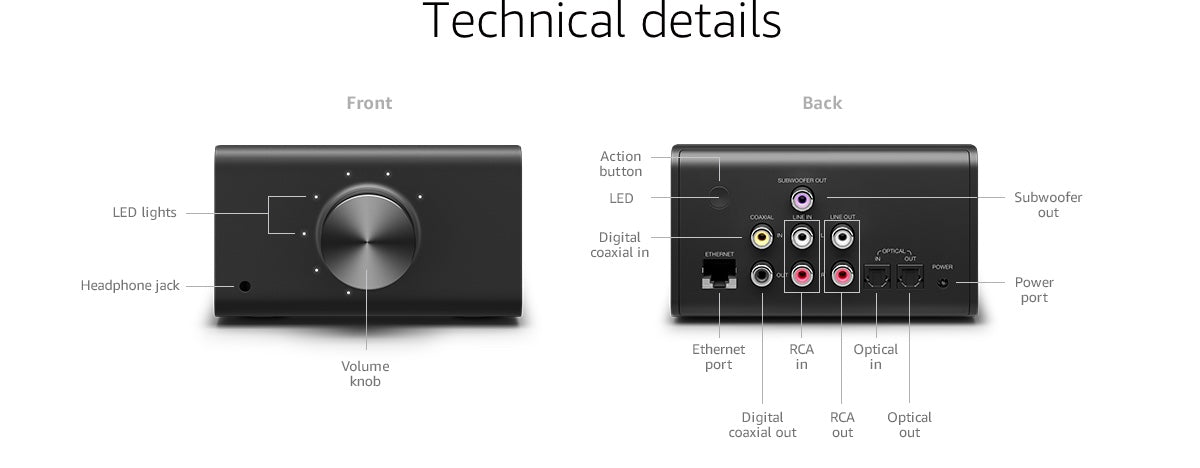

Analog (1 x L/R RCA)Digital (1 x Coaxial RCA, 1 x Optical Toslink)
Analog (1 x L/R RCA, 1x Subwoofer RCA)Digital (1 x Coaxial RCA, 1 x Optical Toslink)
TPA6120A2 High fidelity stereo headphone amplifier and 3.5mm output jack
Volume knob for granular control.
Analog Line-out: < 0.008%; Amplified headphone out: < 0.01%Measured un-weighted at 1kHz maximum output, 20Hz - 20kHz bandwidth AES17
20Hz - 20kHz +0/-1dB5Hz - 22kHz +0/-3dB
Min. 94 dBMeasured un-weighted at 1kHz maximum output, 20Hz - 20kHz bandwidth AES17
Analog Line-out: Min 100db; Amplified headphone out: Min 70dBMeasured un-weighted at 1kHz maximum output, 20Hz - 20kHz bandwidth AES17
Sample rates of 44.1, 48.0, 88.2, 96.0, and 192.0 kHz are supported over optical and coaxial digital inputs. Maximum output over optical and coaxial digital is 48 kHz.
Single RJ45 jack supports 10/100 Mbps Ethernet.
Dual-band Wi-Fi supports 802.11 a/b/g/n (2.4 and 5 GHz) networks. WiFi 6 (802.11 ax) is not currently supported. Does not support connecting to ad-hoc (or peer-to-peer) Wi-Fi networks.
Advanced Audio Distribution Profile (A2DP) support for audio streaming from your mobile device to Echo or from Echo to your Bluetooth speaker. Hands-free voice control is not supported. Bluetooth speakers requiring PIN codes are not supported.
The Alexa App is compatible with Fire OS, Android, and iOS devices. A list of supported operating systems can be found
The Alexa app and Alexa-enabled products include several features for customers with accessibility needs related to vision, hearing, mobility, and speech. Learn more about
Included in the box
Echo Link, power adapter (21W), and Quick Start Guide.
