Upgrade your speakers with a built-in 60W x 2-channel amplifier, high-fidelity streaming music, and Alexa.
Voice control music selection and playback with your compatible Echo device or the Alexa app.
Connect Echo Link Amp to speakers and group with other supported Echo devices to play music throughout your home.
Supports hi-fidelity audio from streaming services like Amazon Music HD.
Multiple digital and analog inputs and outputs provide compatibility with your existing stereo equipment.
Lets you cast to one or more Echo speakers from a line-in input, like an amplified turntable or CD player.
Alexa is able to respond through all your connected speakers.

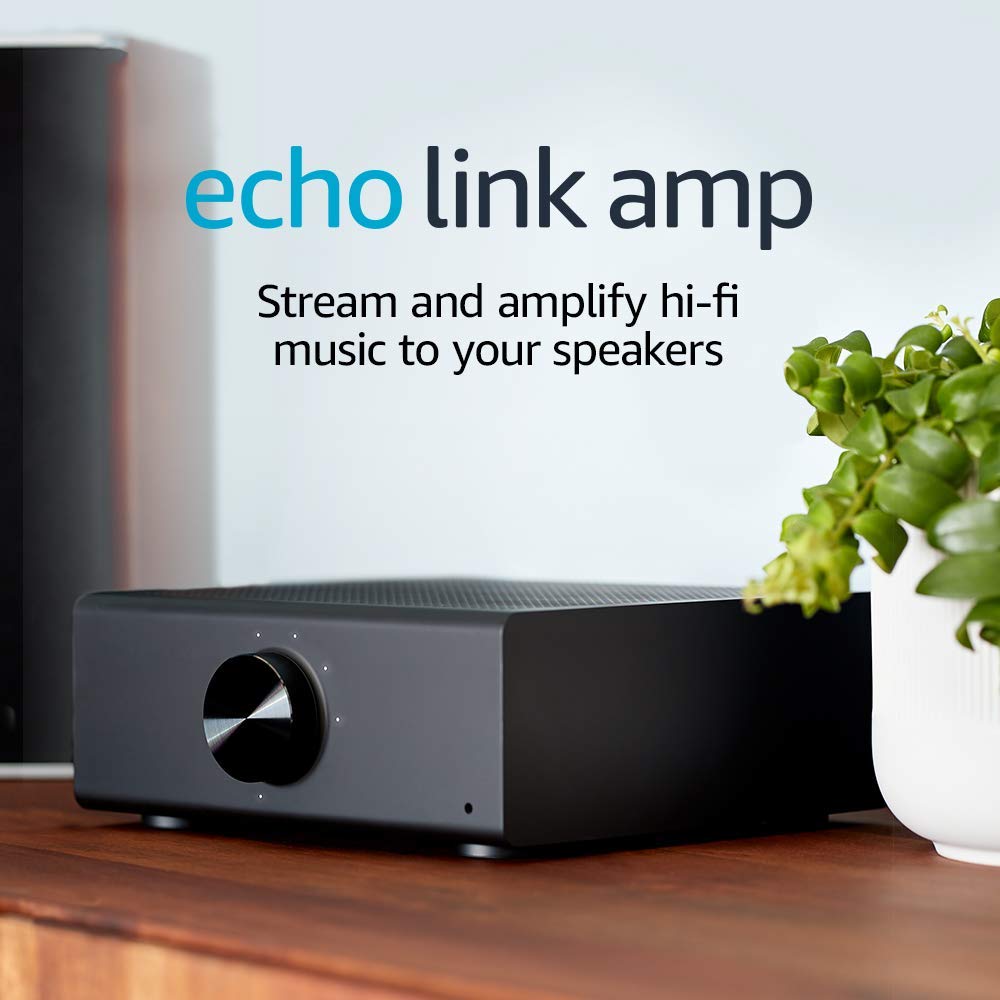

Meet Echo Link Amp
Now you can upgrade your speakers and stream music in superior hi-fi sound. Echo Link Amp streams music from your favorite services—like
Amazon Music, Apple Music, Spotify, Pandora, and Tidal. Use it with Alexa to voice control music selection, volume, and playback.
Play music everywhere
With Echo Link Amp and an Echo device, you can create voice-controlled music groups throughout your home and play streaming music wherever your system goes—the whole house, in one room, or outside. Or plug in a stereo component—like an amplified turntable, CD player, or MP3 player—and cast music to multiple Echo speakers at once. You can also stream high-fidelity music on your headphones.
Works with your system
Echo Link Amp easily connects to your speakers—bookshelf, tower, in-wall, in-ceiling, or outdoor. The inputs and outputs provide compatibility with your existing audio equipment, so you can play music from your favorite source on the system you already love—and it's designed to fit in an audio rack.
Size
8.5 x 9.5 x 3.4 in (217 x 242 x 86 mm)
Weight
80.6 oz (2286 g)Actual size and weight may vary by manufacturing process
Supported audio formats
FLAC, MP3, AAC, Opus, Vorbis; includes support for CD-quality (16-bit) and hi-res (up to 24-bit)
Supported music streaming services
Amazon Music (Standard and HD), Apple Music, Spotify, Tidal, Deezer, Pandora, SiriusXM, iHeartRadio, TuneIn

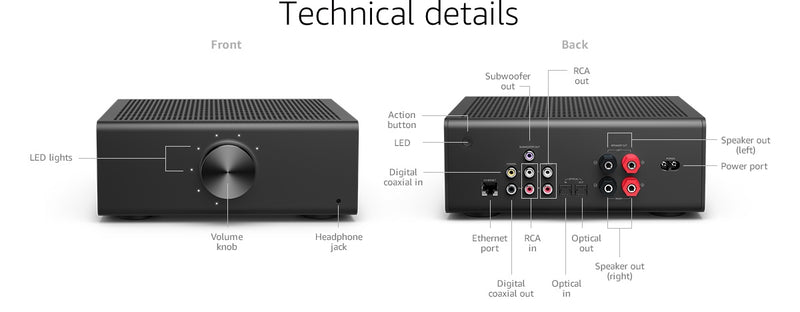

Audio inputs
Analog (1 x L/R RCA) Digital (1 x Coaxial RCA, 1 x Optical Toslink)

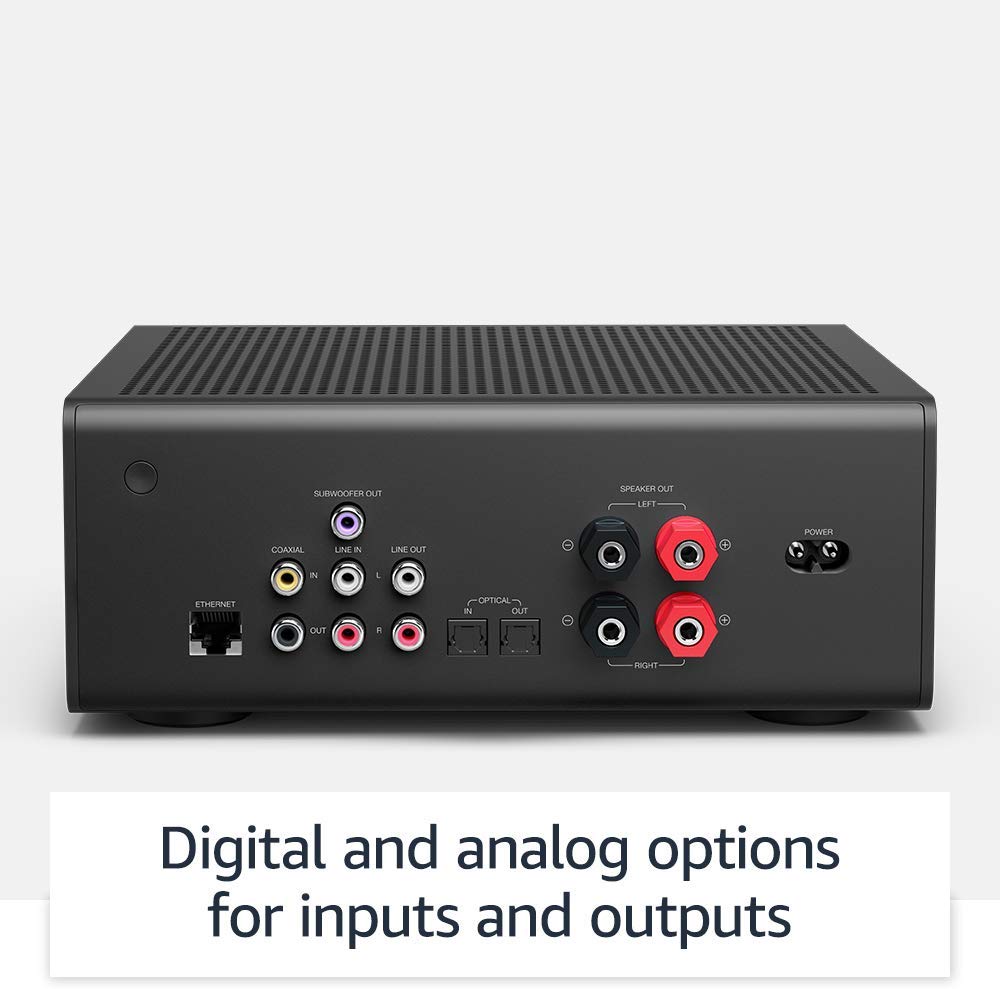

Audio outputs
Analog (1 x L/R RCA, 1x Subwoofer RCA) Digital (1 x Coaxial RCA, 1 x Optical Toslink) L/R Speaker Binding Posts
Headphone
TPA6120A2 High Fidelity Stereo Headphone Amplifier and 3.5mm output jack
Amplifier
2 channel x 60W at 8 Ohms, Class D Digital Amplifier. Volume knob for granular control.
THD
Analog/Amplified Line-out: < 0.008% Amplified headphone out: < 0.01% Measured un-weighted at 1kHz maximum output using AES17 at 20Hz-20kHz bandwidth
Frequency response
20Hz - 20kHz +0/-1dB 5Hz - 22kHz +0/-3dB
Dynamic range
Min. 94 dB Measured un-weighted at 1kHz maximum output using AES17 at 20Hz-20kHz bandwidth
Channel separation
Analog/Amplified Line-out: Min 100db Amplified headphone out: Min 70dB Measured un-weighted at 1kHz maximum output using AES17 at 20Hz-20kHz bandwidth
Sampling frequency
Sample rates of 44.1, 48.0, 88.2, 96.0, and 192.0 kHz are supported over optical and coaxial digital inputs. Maximum output over optical and coaxial digital is 48 kHz.
Ethernet
Single RJ45 jack supports 10/100 Mbps Ethernet.
Wi-Fi
Dual-band Wi-Fi supports 802.11 a/b/g/n (2.4 and 5 GHz) networks. WiFi 6 (802.11 ax) is not currently supported. Does not support connecting to ad-hoc (or peer-to-peer) Wi-Fi networks.
Bluetooth
Advanced Audio Distribution Profile (A2DP) support for audio streaming from your mobile device to Echo or from Echo to your Bluetooth speaker. Hands-free voice control is not supported. Bluetooth speakers requiring PIN codes are not supported.
Alexa App
The Alexa App is compatible with Fire OS, Android, and iOS devices. A list of supported operating systems can be found.
Accessibility
The Alexa app and Alexa-enabled products include several features for customers with accessibility needs related to vision, hearing, mobility, and speech. Learn more about.
Included in the box
Echo Link Amp, power cord, and Quick Start Guide.
