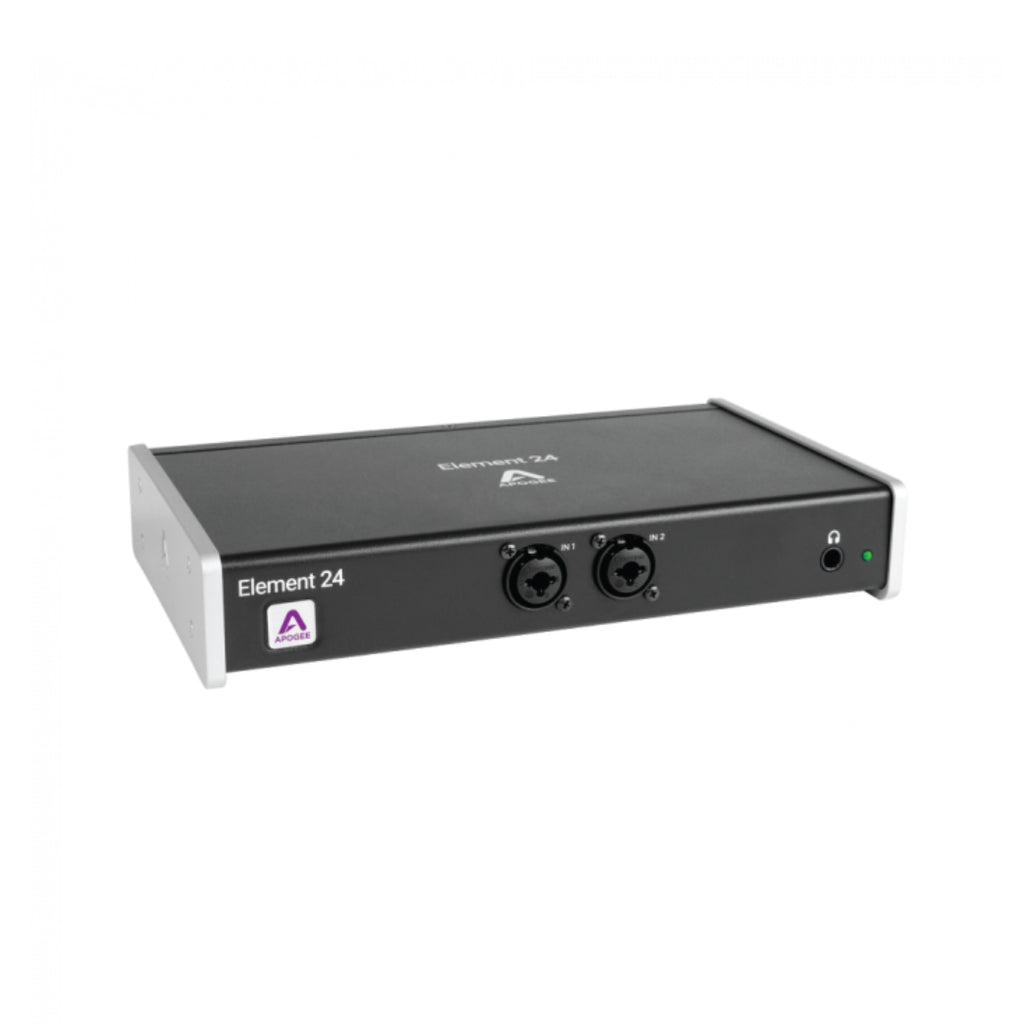

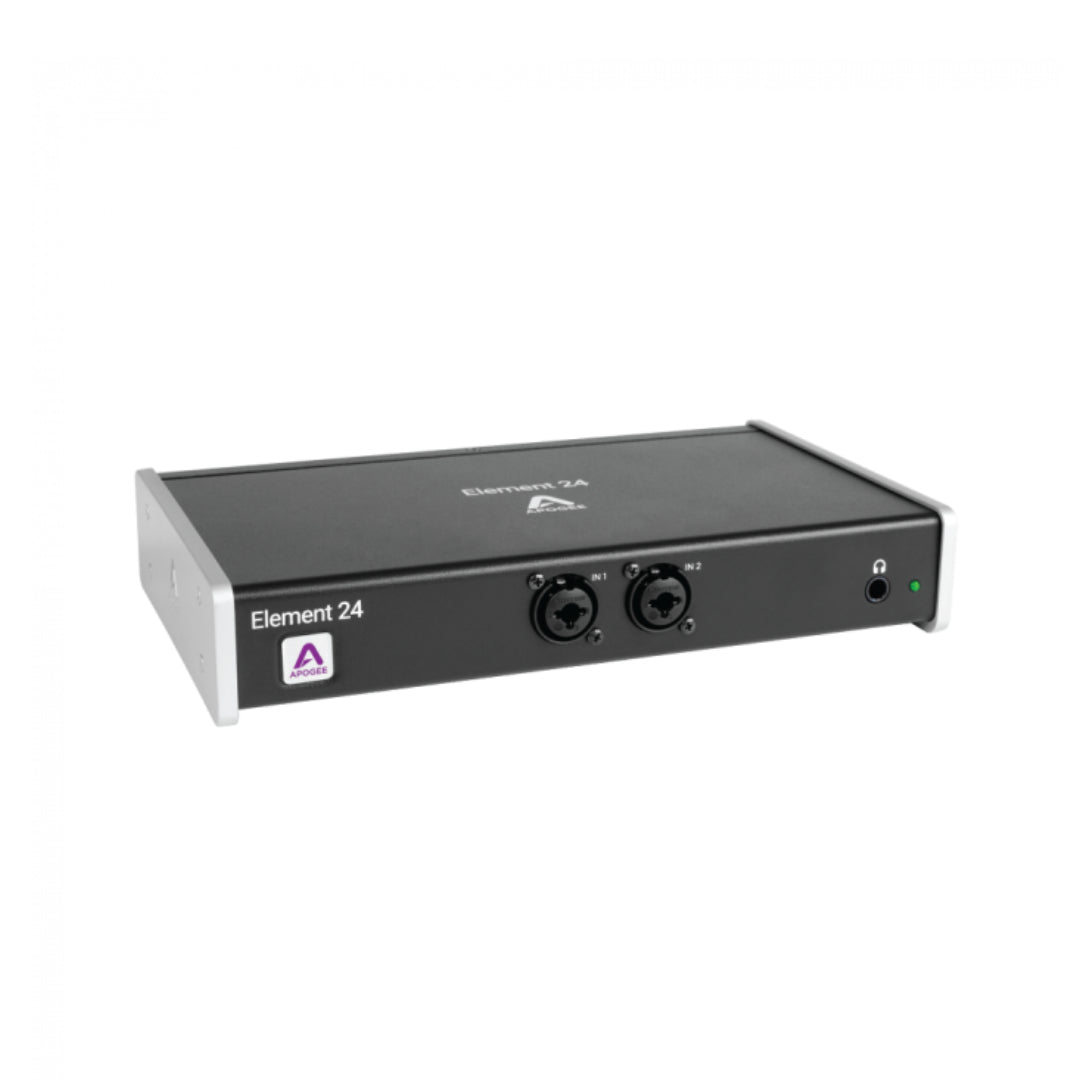

Apogee Element 24

Apogee Element 24

Regular price ฿26,900.00
Regular price Sale price ฿26,900.00
Sale Sold out
Tax included. Shipping calculated at checkout.

10 IN x 12 OUT Thunderbolt Audio I/O Box for Mac

Element 24 is perfect for the independent musician recording with 1 or 2 inputs at a time who wants the best possible sound quality, lowest latency and high quality performance.



Highlights

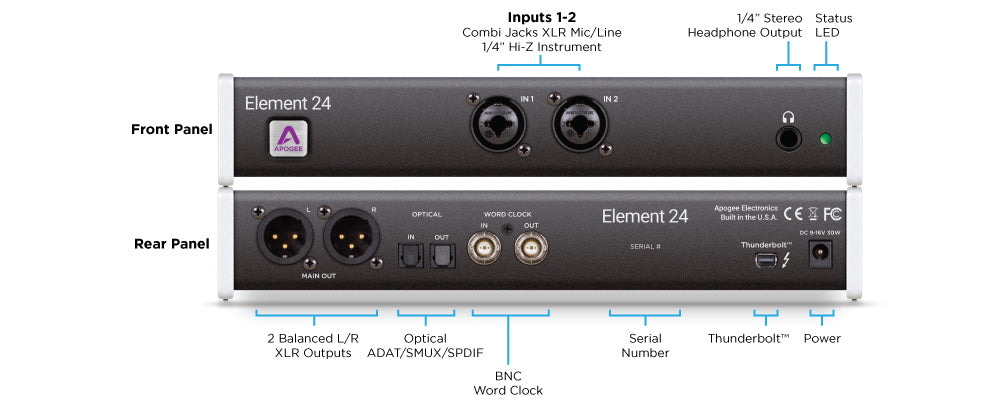

  • 10 IN x 12 OUT Thunderbolt Audio I/O box
  • AD/DA conversion for recording up to 192kHz/24-bit
  • Hardware DSP runs Apogee FX Rack plugins
  • DualPath link workflow for zero latency recording with Apogee FX Plugins
  • 2 analog inputs with world-class mic preamps and selectable 48v phantom power for connecting microphones, instruments or line-level devices
    • 2 combination inputs
    • Gain: Up to 75 dB and advanced stepped gain circuit design
    • Selectable 48v phantom power, Soft Limit and polarity invert
    • EIN: 129dB (un-weighted) @ 60dB, 150Ohm input
    • Max input level: +20dBu
    • Input impedance: 3K Ohm
  • 4 analog outputs
    • 2 balanced L/R XLR outputs
    • 1 1/4” stereo headphone output
  • Single port Thunderbolt connectivity to Mac for ultra-low latency performance
    • 1.41ms round-trip at 96kHz with a 32 buffer setting
  • Optical IN: Supports ADAT, SMUX & S/PDIF
    • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
    • SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
    • S/PDIF: 2 channels, up to 192 kHz on 1 Toslink connector
  • Optical OUT: Supports ADAT, SMUX & S/PDIF
    • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
    • SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
    • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
  • Word Clock IN/OUT via BNC connections for syncing with other digital audio gear
  • Apogee Control Software for Mac provides all control of hardware parameters including input gain, output level and low latency monitoring
  • Apogee Control Mobile App provides wireless remote control of hardware via iPhone, iPad or iPod touch
  • Works with Apogee Control desktop hardware remote control (Sold separately)
  • Multi-Unit Thunderbolt support – Connect any two Element audio I/O boxes directly to Thunderbolt ports on your computer
  • Apogee Ensemble Thunderbolt expander – Connect any Element to the second port on an Ensemble

System Requirements

Mac OS:

  • Computer: Thunderbolt-equipped Mac (iMac, Macbook Pro, Macbook Air, Mac Pro)
  • Memory: 4 GB RAM minimum, 8 GB recommended
  • OS: 10.10 or greater
  • Connection: Any available Thunderbolt port*
  • Power: DC Power supply included

*Thunderbolt cable not included

Compatible Software:
  • Any Mac Core Audio compatible application
  • Recommended apps: Logic Pro, Pro Tools, Ableton Live, GarageBand, MainStage, Final Cut, Digital Performer, Studio One, Cubase, and Nuendo

In the box:

  • Element 24
  • Universal Power Supply with standard 3 pin-IEC cable
  • Quick Start Guide
  • Warranty Booklet

Mic Preamps:

  • 2 Mic preamps
  • Gain: Up to 75 dB and advanced stepped gain circuit design
  • Selectable 48v phantom power, Soft Limit and polarity invert
  • EIN: 129dB (un-weighted) @ 60dB, 150Ohm input
  • Max input level: +20dBu
  • Input impedance: 3K Ohm

A/D conversion:

  • Max input level (+4dBu ref/Mic): +20dBu
  • Max input level (-10dBV ref): +6dBV
  • Input impedance: 5KOhm
  • Freq resp 10 Hz -20Khz: > +/-0.2dB (@44.1Khz)
  • Rel. THD + N: -110dB
  • Dyn. Range: 119dB (A-weighted)

D/A conversion:

  • Max output level (+4dBu ref): +20dBu
  • Max output level (-10dBV ref): +6dBV
  • Line output impedance: 90 Ohm
  • Freq resp 10Hz -20 Khz: > +/- 0.05dB (@44.1Khz)
  • Rel. THD+N : -114dB
  • Dyn Range: 123dB (A-weighted)
  • Headphone Max output level:
    • 560mW into 30 Ohm
    • 90mW into 600 Ohm
  • Headphone THD+N: -107 dB with 600 Ohm load @ 19 dBu
  • Headphone Dyn Range: 117dB a-weighted
