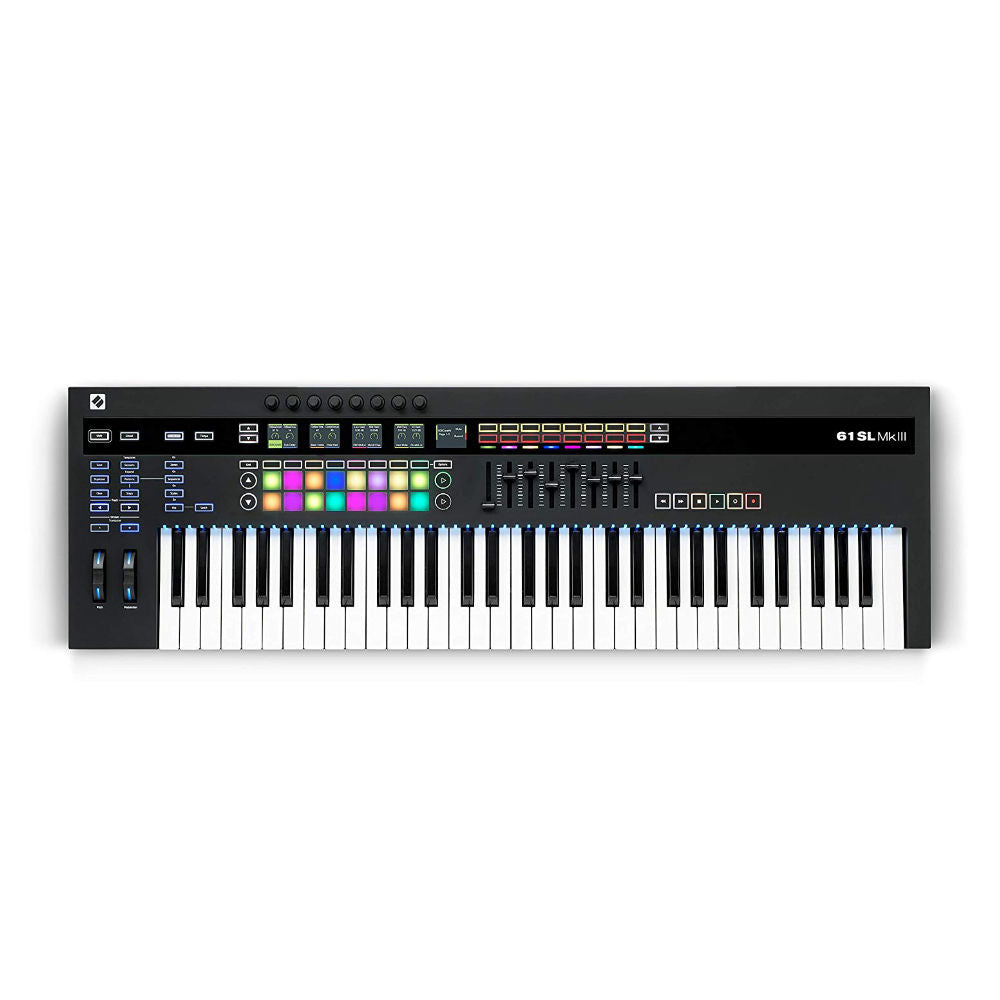

Novation : 61SL MK III

Novation 61SL MkIII มาพร้อมกับ backlit pitch และ modulation wheels พร้อมด้วยหน้าจอ LCD เพื่อการมองเห็นพารามิเตอร์ต่างๆของคุณได้อย่างรวดเร็ว



Absolute hardware control

Bring MIDI hardware and CV/Gate synths together by plugging them all into SL MkIII, taking total control directly from the internal eight-track polyphonic pattern-based sequencer.



Easily integrate hardware with your DAW

Do you use a DAW and crave integrating your favourite hardware? Well, you can have the best of both worlds. Make controlling your software easy by recording productions from a studio centrepiece.



The perfect controller for Live™

We worked with Ableton® to create an absolutely stunning keyboard controller for their Live™ music-making software. The five colour LCD screens give you full parameter feedback, enabling you to see everything you are controlling.



Internal eight-track pattern-based sequencer

Real time record or input notes per step. Play and edit your sequences directly from the keyboard. Record your movements as automation into the sequencer, bringing life to your production.



One routable clock for the whole system

Whether you're in the box or outside the box, the MIDI and analogue clock and transport controls keep everything running in time.



Arpeggiator

Choose an arp type, set a sync rate, tweak the length, and then use the pads to design your rhythms in real time.



Customisable templates

Highly customisable mappings for hardware and software easily control everything. Create your own templates in the software editor, and save them to the keyboard.



LED feedback

Work with scales and keys and set up multiple zones and layers on the keyboard. See everything instantly with vibrant on-key RGB LED feedback.



Comprehensive connectivity

USB; MIDI In, Out, Out 2/Thru; three pedal inputs; Analogue Clock Out; and two CV Pitch, Gate, and Mod outputs can be used to route anything anywhere.



Control all major music software

Your choice of music software is crucial to your creativity. SL MkIII's pads, buttons, eight faders and eight knobs take control of all major music software using InControl. SL MkIII also works with any HUI-compatible DAW.



High-resolution scan

The SL MkIII has an exceptionally high scan rate of 10kHz (10,000 times per second), giving the keyboard a huge dynamic range for expressive keyboard performance.



Keys for the player

The SL MkIII boasts our finest, most playable and expressive synth-style semi-weighted keybed, with a sprung action and our highest scan rate, all tuned to the needs of the experienced player. It’s got aftertouch too, assignable to anything.



Selectable Velocity Curves

The Velocity Curves come to you from a Novation engineer who’s been designing and playing keyboard controllers for two decades. Choose from a comprehensive selection of Velocity Curves to suit your playing style.



Pads

SL MkIII's velocity-sensitive RGB pads have multiple functions: they can be used for launching clips, as steps in the sequencer, they are perfect for the finger drummer, and have polyphonic aftertouch.



Backlit Pitch and Modulation wheels

Pitch and Modulation wheels have RGB LEDs that change colour to show what track you're working on. Brightness gives you the value of what you're changing.



Components

Components allows you to backup and restore your templates and sessions in the cloud, enabling access from anywhere in the world. All content can also be saved locally.



Included Software
• Ableton Live Lite
• 4 GB of Loopmasters sounds and samples



What’s In The Box
• Novation 61SL MkIII
• Premium braided USB cable
• 12V DC power supply
• Printed Getting Started Guide
• Safety information sheet



Specifications

• 61 note velocity sensitive, individually sprung, synth style, semi-weighted keyboard
• 16 full-colour RGB backlit velocity sensitive drum pads
• 2 Page and 2 scene launch buttons
• 8 continuous rotary knobs
• 8 sliders
• 6 dedicated transport controls
• RGB backlit pitch bend and modulation wheels
• 2 octave / transpose buttons
• 2 Track buttons
• 5x RGB TFT LCD screens
• 59 Backlit buttons with tact switches
• 61 RGB LEDs plus 49 or 61 keybed RGB LEDs
• 16 Assignable buttons x 2 pages (32 assignable buttons)
• Assignable grid x 2 pages | (32 assignable pads)
• Backlit RGB Mode switching buttons including InControl

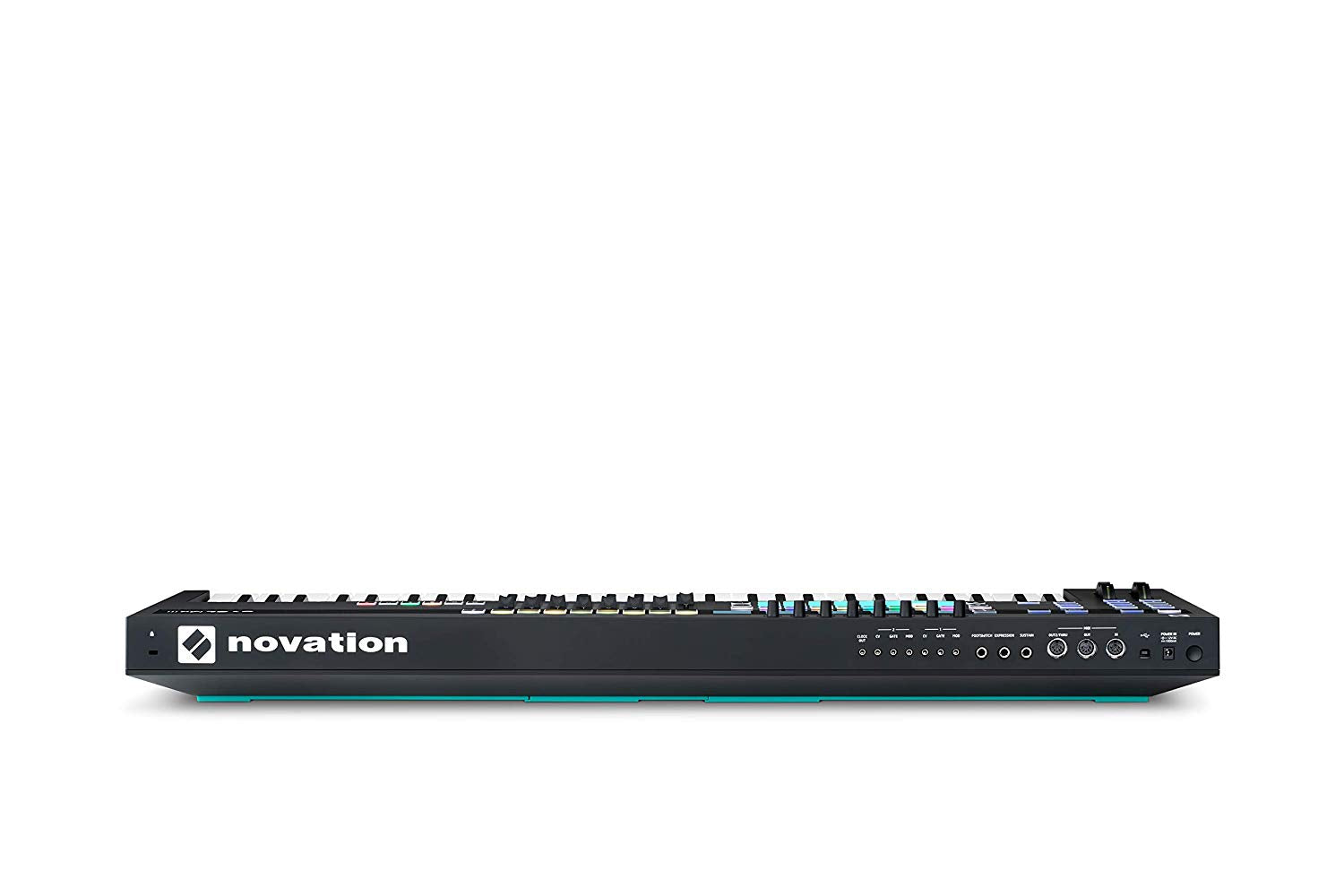

Rear Panel & Connectors

• Power switch
• DC power socket
• USB socket
• MIDI IN, OUT, OUT2 / THRU - 3x 5-pin DIN sockets
• Sustain and Expression pedal 1/4" TRS jack inputs
• Footswitch pedal 1/4" TS jack input
• CV, Gate, Modulation -1- on 3.5mm jack sockets
• CV, Gate, Modulation -2- on 3.5mm jack sockets
• Clock out
• Kensington security slot



Sequencer

• 64 Sessions
• 8 Tracks per session
• 8 Patterns per track (16 steps per Pattern for a total of 128 steps per track)
• Real time record (notes, with velocity and automation)
• Auto-quantise notes to steps and automation to 8 events per step
• All assignable controls can be automated (8 maximum automation lanes)
• Internal tempo range 40 - 240
• External synced tempo range 30 - 300
• Swing 20 - 80%



Real Time Performance

• 22 Scale types and chromatic transposition
• Pattern expand view - flip the grid
• Pattern start and end, direction incl. random
• Configurable pattern chain
• Session instant switching and queued switch



Power Requirements

• Maximum power consumption 12V DC 1000mA
• Power supply included (This product cannot be powered from USB)
