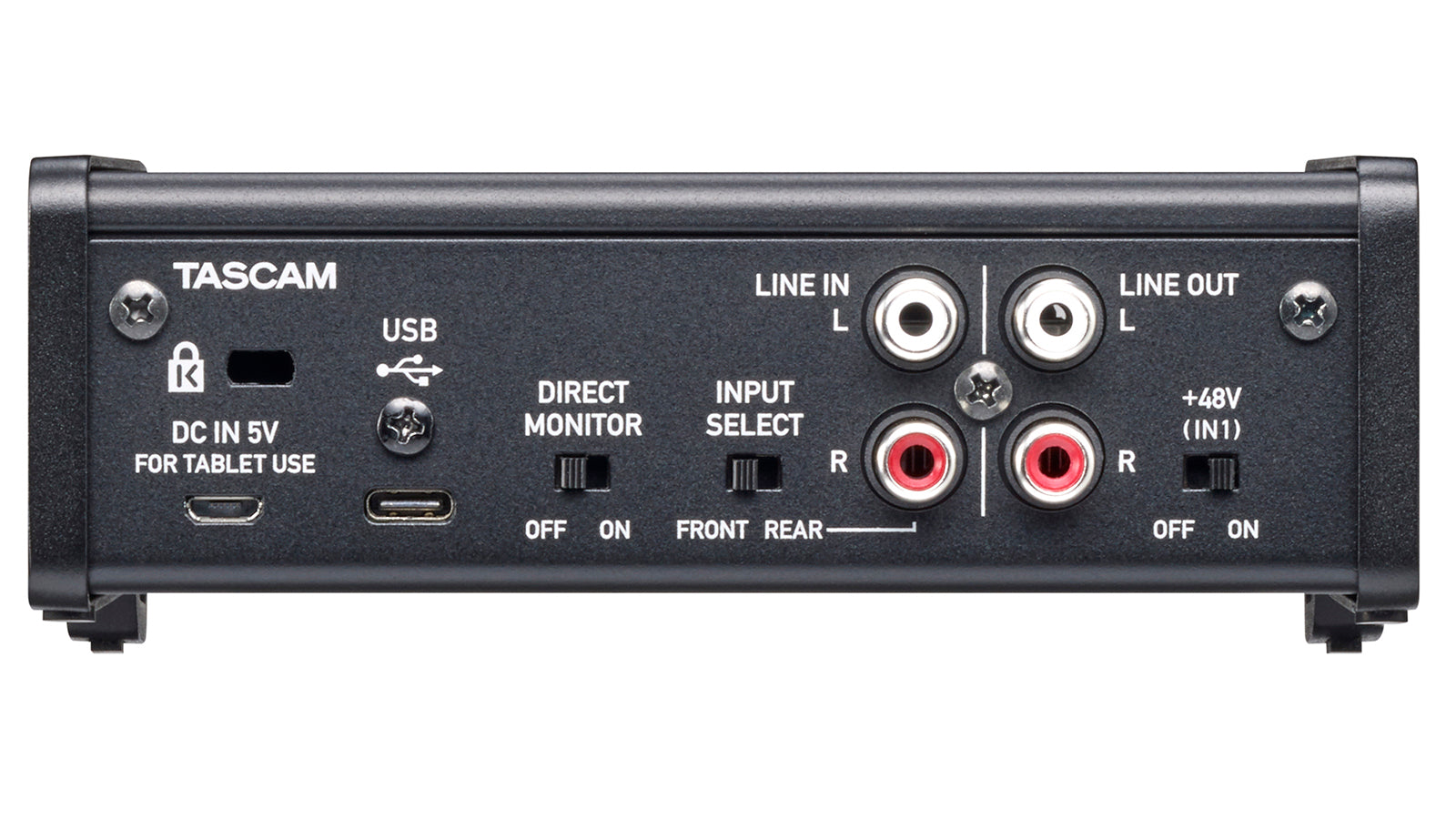

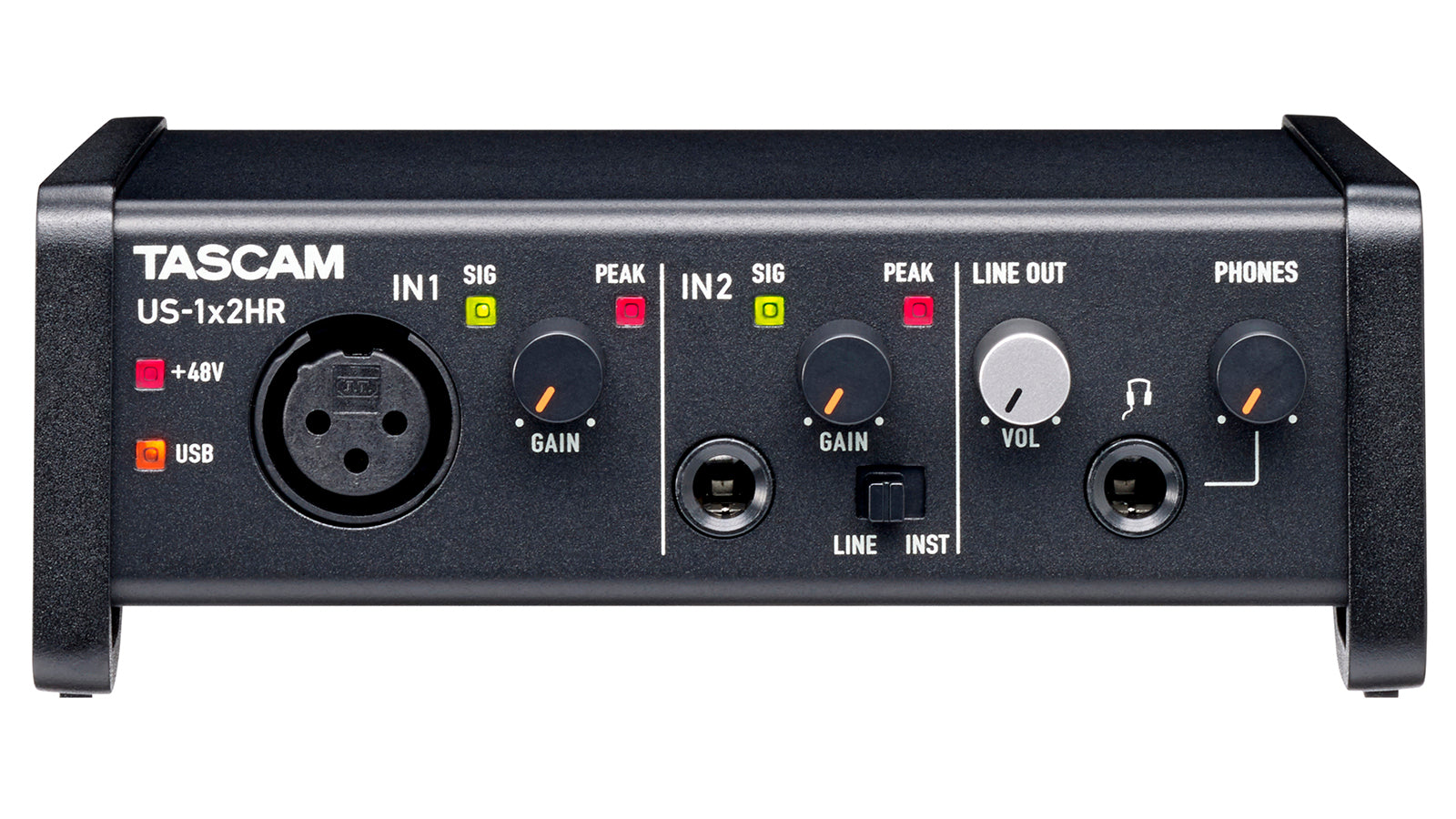

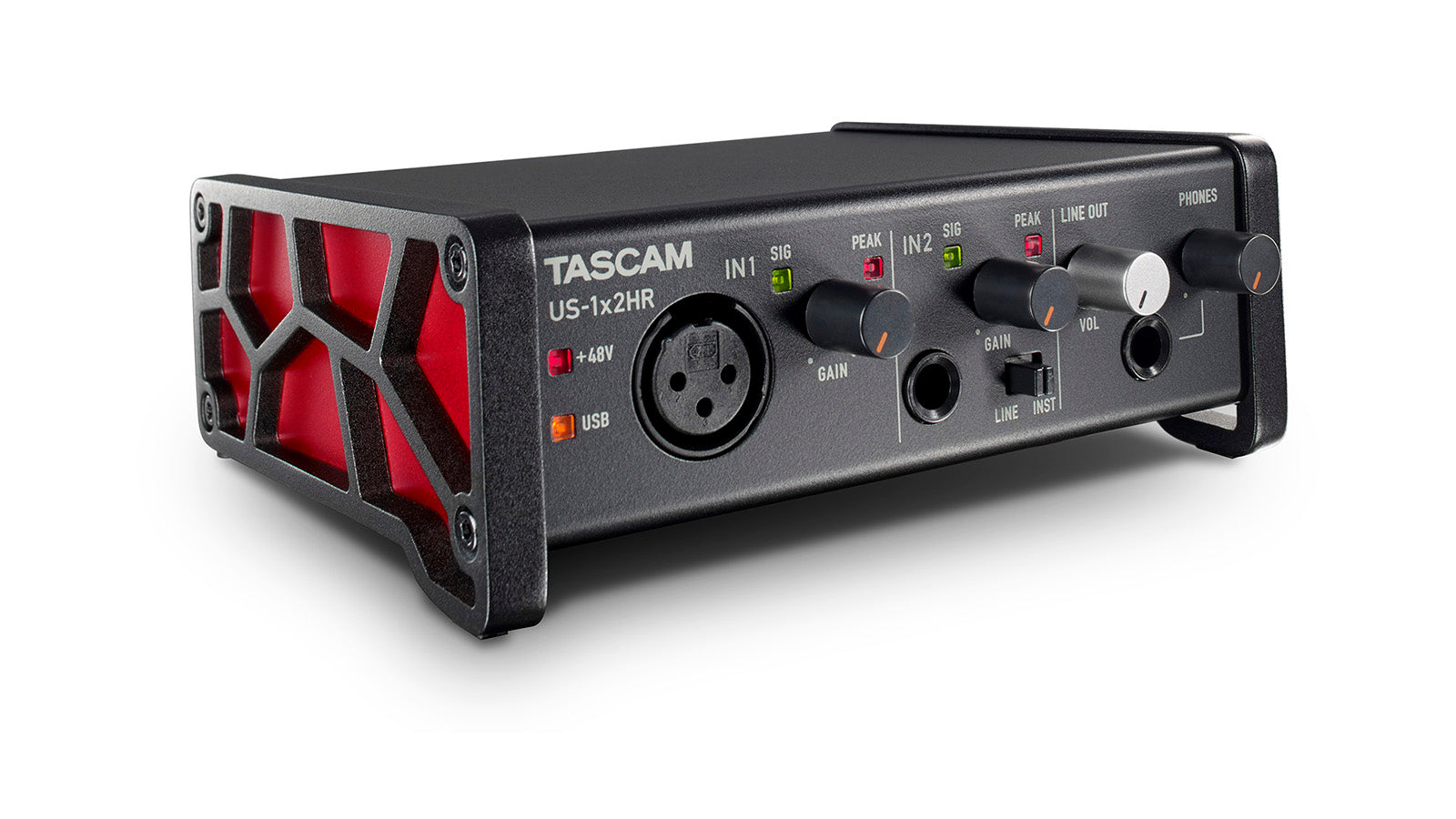

Tascam US-1x2HR

by Tascam
Availability:
Available for order
Save 13% Save 13%
Original price ฿3,990.00
Original price ฿3,990.00 - Original price ฿3,990.00
Original price ฿3,990.00
Current price ฿3,490.00
฿3,490.00 - ฿3,490.00
Current price ฿3,490.00

Delivery Time

1-2 working days for “Ready-To-Ship” Orders Monday-Friday, dispatching mainly from Bangkok, Thailand.

For products marked "Available For Order" Please contact us for ETA

Fast Delivery

Free for orders over ฿15,000 and delivered within 2 hours*

Contact us for more details.

Request a quote

Natural, crisp & clear sound quality thanks to the implemented Ultra-HDDA Mic Preamp with 192 kHz support

High resolution reproduction in the US-HR series has been pursued based on TASCAM's policy to recreate sound as close to the original as possible. Therefore, the in-house developed Ultra-HDDA mic preamp combined with a newly improved audio circuit delivers enhanced audio performance with the most transparent and low-noise sound.



Zero-latency direct monitoring function

Direct monitoring will diverge signals before sending them to the computer, resulting in smooth, in-time monitoring without any sound delay during both recording and performance.



The US-HR models come bundled with world-renowned software that will enhance the user's production workflow. At the core of music production, Steinberg's Cubase LE/Cubasis LE 3 DAW is included, along IK Multimedia's Sample Tank SE, which comes free of charge with a massive 30 GB sound library encompassing more than 2,000 different musical instruments.



US-HR models also come with a free 3-month subscription to Auto-Tune Unlimited, a comprehensive suite of industry standard pitch correction and vocal effects.



Interface for podcasts and live streaming

The US-1x2HR can be used with computers or smartphones to easily create podcasts or live streams. The audio can be switched between stereo/mono, and the loopback function allows the audio from the computer to be returned to the streaming software for playback during live streams. US-1x2HR also supports OBS, which is popular and used worldwide.



New audio interface engine

Capitalizing on our experience being one of the pioneers in manufacturing USB audio interfaces, we achieved further stability in our native driver. The audio buffer size can be set starting from 4 samples (Windows only) to give the best performance to every different environment; maximizing the capability of the computer in use while creating a low-latency environment.



Spec description

Sampling frequency 44.1k/48k/88.2k/96k/176.4k/192k Hz
Quantization bit rate 24bit
Analog audio inputs
MIC IN (IN 1)
Connector XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance 2.4k ohms
Maximum input level
(GAIN:MIN)
+9dBu (2.183Vrms)
Gain 58dB
LINE/INST IN(IN 2)
LINE IN
Connector 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
* When set to "LINE" at LINE/INST switch
Input impedance 10k ohms
Maximum input level
(GAIN:MIN)
+20dBu(7.75Vrms)
Gain 45dB
INST IN
Connector 6.3mm(1/4") TS-jack(T:HOT, S:GND), UNBALANCED
* When set to "INST" at LINE/INST switch
Input impedance 1M ohms or more
Maximum input level
(GAIN:MIN)
+3dBV(1.1425Vrms)
Gain 45dB
LINE L/R IN
Connector RCA pin-jack, UNBALANCED
Input impedance 10k ohms
Maximum input level +6dBV(1.9953Vrms)
Analog audio outputs
LINE OUT
Connector RCA pin-jack, UNBALANCED
Output impedance 100 ohms
Maximum output level +6dBV (1.995Vrms)
PHONES
Connector 6.3mm(1/4") stereo phone jack
Maximum output level 18mW+18mW or more
(THD+N 0.1% or less, 32ohms loaded)
Control IN / OUT
USB
Connector USB Type-C
Format USB2.0 HIGH SPEED (480Mbps)
DC IN 5V
Connector USB Micro B type
Power
When connected PC USB bus powered
When connected iOS USB power adapter (that can supply 5V and a current of at least 700mA)*1
External battery pack (that can supply 5V and a current of at least 700 mA)*2

*1 We strongly recommend using TASCAM PS-P520E AC adapter or the USB power adapter included with the iPad/iPhone. No USB power adapter is included with an iPod touch. To use it with an iPod touch, purchase a genuine Apple USB power adapter (that can supply 5V and a current of at least 700mA) separately.
*2 We strongly recommend using a TASCAM BP-6AA external battery pack. If using another external battery pack or mobile battery, purchase one that can supply 5V and a current of at least 700mA.
Power consumption 1.8W
Dimensions 146(W) × 55(H) × 120(D)mm (including protrusions)
Weight 623g
Operating temperature 5 to 35°C
Accessories USB cable (Type-A to Type-C), Set of DAW software installation guides, Set of DAW plug-in software installation guides, Owner's Manual (including warranty)



Audio performance

Mic amp EIN (equivalent input noise) -128dBu or less (150ohm termination with gain knob at MAX)
Frequency response
MIC IN 1
44.1k/48k Hz 20Hz to 20kHz, +0dB/-0.4dB(JEITA)
88.2k/96k Hz 20Hz to 40kHz, +0dB/-0.4dB(JEITA)
LINE IN 2
44.1k/48k Hz 20Hz to 20kHz, +0dB/-0.3dB(JEITA)
88.2k/96k Hz 20Hz to 40kHz, +0dB/-0.3dB(JEITA)
LINE OUT
44.1k/48k Hz 20Hz to 20kHz, +0.2dB/-0.4dB(JEITA)
88.2k/96k Hz 20Hz to 40kHz, +0.2dB/-0.4dB(JEITA)
THD + N 0.0013% (MIC IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF)
0.0027% (LINE IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF)
0.0015% (LINE OUT, 1kHz sine wave, -4dBFS input, MONITOR knob at maximum, 20kHz SPCL LPF)
S/N ratio 109dB (MIC IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight)
105dB (LINE IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight)
110dB (LINE OUT, MONITOR knob at maximum, 20kHz SPCL LPF+A-Weight)
Crosstalk 95dB or more (MIC/LINE IN to LINE OUT, 1kHz sine wave, GAIN knob at minimum)




Computer system requirements

Windows

Compatible computers Windows computer with a USB 2.0 (or higher) port
CPU type/speed 2GHz or faster dual core processor (x86)
Memory 2GB or more
Driver ASIO ASIO2.0, WDM


Mac OS

Compatible computers Mac with a USB 2.0 (or higher) port
CPU type/speed 2GHz or faster dual core processor
Memory 2GB or more
Driver Core Audio



iOS/iPadOS Device

Driver Core Audio
